High Purity Zirconium Sputtering Target Zirconium Tube For Energy-Saving Glass

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number Custom
Minimum Order Quantity 1kg
Price Negotiate
Packaging Details Plywood case
Delivery Time 7~10days
Payment Terms T/T
Supply Ability 50ton/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name High Purity Zirconium Sputtering Target Zirconium Tube For Energy-Saving Glass Material Zirconium & Zirconium Alloy
Grade Zr702,Zr704,Zr705,Zr60001 Etc. Zr+Hf >99.5%
Diameter 145-150mm Wall Thickness 0.5-4.5mm
Length 3000mm Delivery Annealed
High Light

Energy Saving Glass Zirconium Tube

,

High Purity Zirconium Sputtering Target

,

Zirconium Tube For Glass

Leave a Message
Product Description

Product Information:



Name: High Purity Zirconium Sputtering Target Zirconium Tube For Energy-Saving Glass
Grade: Zr2 Zr4 Zr702 Zr705 Zr60804 Zr60001 Zr60901
Density: 6.51g/cm3
Size: OD 6-127mm,WT 0.5-4.5mm,L <10meters Or process according to customer's request.
Standard: ASTM B523 ASTM B658,ASTM B353
Main process: Preparation of consumable electrodes, casting, forging, hot extrusion (tube blank), cold working and finishing.
Status: Annealing (M) Hot working status (R) Cold working status (Y) Annealing
Surface: Rolled surface, polished surface, polished surface, pickled metal surface

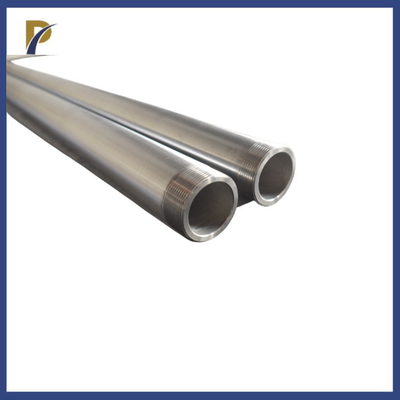

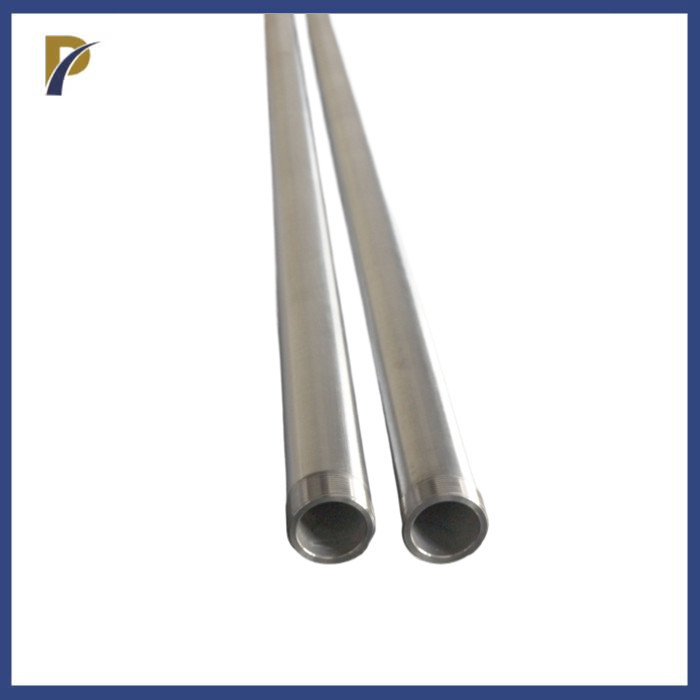

High Purity Zirconium Sputtering Target Zirconium Tube For Energy-Saving Glass 0High Purity Zirconium Sputtering Target Zirconium Tube For Energy-Saving Glass 1

Dimension(mm)
Maximal OD
Maximal Length
Maximal single segment length
Bonding ratio
145-150
3000
250
≥95%
Grade Element composition(%)< Standard
Zr+Hf Hf Fe+Cr Sn H N C Nb O
R60702 99.2 4.5 0.20 -- 0.005 0.025 0.05 -- 0.16 ASTM B658
R60703 98 4.5 -- -- --0.005 0.025 -- -- --
R60704 97.5 4.5 0.20~0.40 1.0~2.0 0.005 0.025 0.05 -- 0.18
R60705 95.5 4.5 0.2 -- 0.005 0.025 0.05 2.0~3.0 0.18
R60706 95.5 4.5 0.2 -- 0.005 0.025 0.05 2.0~3.0 0.18
R60804 97.5 0.01 0.25~0.37 1.2~1.7 0.0025 0.008 0.027 -- 0.09~0.16 ASTM B353
R60001 99.9 0.01 0.17 0.005 0.0025 0.008 0.027 -- --

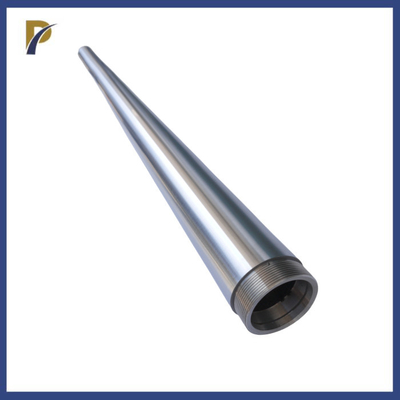

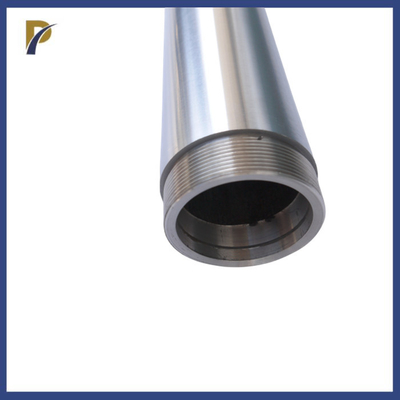

High Purity Zirconium Sputtering Target Zirconium Tube For Energy-Saving Glass 2High Purity Zirconium Sputtering Target Zirconium Tube For Energy-Saving Glass 3

High Purity Zirconium Sputtering Target Zirconium Tube For Energy-Saving Glass 4

Why Choose Us:



1). Reliable quality, but competitive price

2). Rich experience in rolling process

3). Comprehensive and advanced production facility

4). Customer-oriented service



Package & Shipping



High Purity Zirconium Sputtering Target Zirconium Tube For Energy-Saving Glass 5

Metal Zr702 Zirconium Coiled Foil In Stock With High Purity For Industry 4



Company Main Products:



Zirconium crucible,zirconium rod,zirconium plate,zirconium target etc.

Titanium rod,sheet,tube,flange,screw,ring etc.

Molybdenum electrode,plate,rod,crucible,thread rod etc.

Tungsten wire,rod,sheet,crucible,electrode,tube etc.

Tantalum disc,foil,strip,rod,plate,tube etc.

Niobium target,rod,processing parts etc.



High Purity Zirconium Plate Zr2 Zr702 Zr705 Zirconium Alloy Plate Polished Surface 9

Shaanxi Peakrise Metal Co., Ltd. is an rich experienced tungsten,molybdenum, tantalum, niobium, titanium,zirconium,nickel non-ferrous metal production enterprise,Products are exported to Taiwan, Ukraine, South Korea, the United States, Australia, Germany, Iran and other countries, and have established long-term good cooperative relations with customers. Our products are highly recognized and evaluated by customers.has a variety of production equipment, such as intermediate frequency sintering furnace, vacuum arc melting furnace, laser cutter,plasma electron beam melting furnace, vacuum annealing furnace, various rolling mills, wire drawing machines, plasma welding rooms, lathes, milling machines, sawing machines, drilling machines, Shears, Stamping Equipment, Cutting Equipment, Grinders, Straightening Machines, CNC, etc.
