Mo MoLa TZM Molybdenum Products Heater Furnace Element Molybdenum Heating Element Molybdenum Heater For Vacuum Furnace

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number custom
Minimum Order Quantity 1pc
Price $5~150/pc
Packaging Details plywood case
Delivery Time 7~10 work days
Payment Terms T/T
Supply Ability 2000kgs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Molybdenum Heating Furnace Element Material Mo, MoLa, TZM
Density 10.2g/cm3 Purity 99.95%
Diameter Dia.0.3 - 3 Mmx Coil, Dia. 3 - 11 Mm X 6000 Mm Long Use Temperature 1800°C
Surface Black , Alkaline Wash MOQ 1pc
High Light

MoLa Molybdenum Products

,

TZM Molybdenum Products

,

Molybdenum Heater Furnace

Leave a Message
Product Description

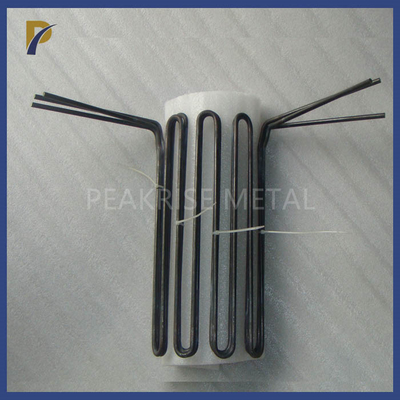

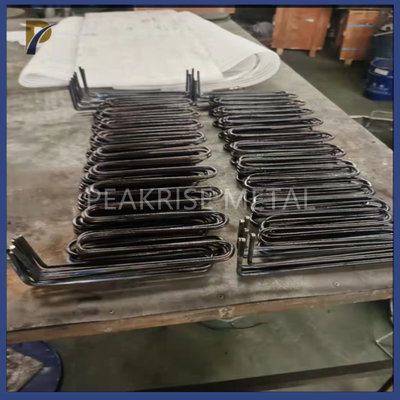

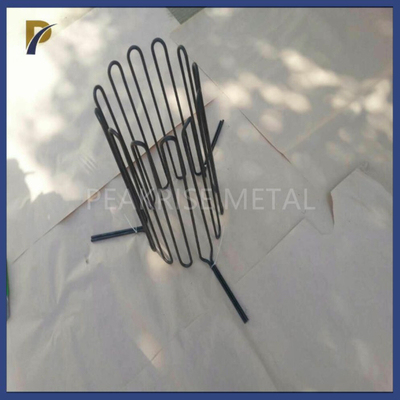

Molybdenum Heating Furnace Element



1. Description of Molybdenum Heating Furnace Element:



Special supplier of Molybdenum heating furnace element
Fine shape according to user's drawing



Molybdenum Heating Element



According to furnace design and operating temperature, we supply hot zones with heating elements in the form of strip heaters, wire and rod elements, stranded-wire elements or mesh-heaters.



1) Molybdenum Strip Heater

Made of Mo, MoLa, TZM

Very fine shape

High mechanical and thermal stability

Low creep deformation

Supply heating elements according to user's drawing



2) Molybdenum heater wire and rod

Size: dia.0.3 - 3 mm x coil

dia. 3 - 11 mm x 6000 mm long

Very fine surface and density uniformity



Mo MoLa TZM Molybdenum Products Heater Furnace Element Molybdenum Heating Element	 Molybdenum Heater For Vacuum Furnace 0Mo MoLa TZM Molybdenum Products Heater Furnace Element Molybdenum Heating Element	 Molybdenum Heater For Vacuum Furnace 1



2. Physical and actual chemical properties of Molybdenum Heating Furnace Element:





Product name: Mo heater element
Tensile strength 610 Mpa
Elongation ≥10%
Purity ≥99.95%,99.97%
Size:

dia.0.3 - 3 mm x coil

dia. 3 - 11 mm x 6000 mm long

Surface: black
Use temperature 1800°C
Quantitative analysis
Element Ni Mg Fe Bi Al Pb Si Cu P Ca
Concentration(%) 0.0006 0.0006 0.001 0.0006 0.003 0.0006 0.003 0.0006 0.001 0.0006
Element C O Sb
Concentration(%) 0.001 0.005 0.0006
Purity(Metallic Base) Mo99.95%
Element Ni Pb Fe Mg Al Bi P Cd Si
Concentration(%) 0.0014 <0.0001 0.0047 <0.0001 0.0002 <0.0001 <0.001 <0.001 <0.001
Element C N Sn Sb Cu
Concentration(%) 0.0021 0.03 <0.0001 <0.0001 <0.0005
Purity(Metallic Base) Mo≥99.97





3. Applictaion of Molybdenum Heating Furnace Element:



Molybdenum heating electric furnace wire is a common heating element for various muffle furnaces, tube furnaces, kilns, Hydrog enenvironment furnace, vacuum furnace etc.



4. Advantage of Molybdenum Heating Furnace Element:


- uniform grain with densified microstructure ensures longer use time.
- precise machining tolerance.

- professional after-sales service



5. Package details of Molybdenum Heating Furnace Element:



First packaging with moisture-proof paper

Second packaging with Kraft paper

Third packaging with foam plastics in all side of plywood case.

Finally packing products in plywood case



6. Transportation of Molybdenum Heating Furnace Element:



Mo MoLa TZM Molybdenum Products Heater Furnace Element Molybdenum Heating Element	 Molybdenum Heater For Vacuum Furnace 2
