Thickness 3.0mm TZM Alloy Plate Prepared Metal By Powder Metallurgy Alloy Plates

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number Plate
Minimum Order Quantity 1kg
Price $50~100/kg
Packaging Details Plywood case
Delivery Time 7~10 work days
Payment Terms T/T
Supply Ability 2000kgs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name TZM Alloy Plate Prepared By Powder Metallurgy Material Titanium Zirconium Molybdenum Alloy
Grade TZM Shape Plate
Purity 99.06% Density 10.2g/cm3
Thickness Min 0.15mm Surface Bright,Alkaline Washing,Polished
High Light

custom TZM Alloy Plate

,

0.15mm TZM Alloy Plate

,

tzm metal

Leave a Message
Product Description

TZM Alloy Plate Prepared By Powder Metallurgy



1. Description Of TZM Alloy Plate Prepared By Powder Metallurgy:



The best molybdenum alloy is TZM. This alloy contains not less than 99.2% molybdenum, up to 99.5%, 0.50% titanium, 0.08% zirconium and Mo-Hf-C alloys strengthened by hafnium carbide particle precipitation. At temperatures above 1300°C, TZM is twice as strong as pure molybdenum. The recrystallization temperature of TZM is about 250'C higher than that of molybdenum, and it has better welding performance.



The surface of the titanium zirconium molybdenum plate (TZM plate) is dark brown, and after chemical cleaning, it is silver-gray metallic luster. According to the width and thickness provided by the user, our company can produce TZM boards with smooth and flat surface, no defects such as heavy skin, delamination, cracks, cracked edges, and inclusion of impurities. Mainly used for molybdenum furnace parts, electric vacuum devices, thermal insulation bottles, etc.



2.  Size Of TZM Alloy Plate Prepared By Powder Metallurgy:



Common some size of TZM alloy plate:



Thickness < 0.15 mm 0.20 mm 0.25-0.4 mm 0.5-2.0 mm 2.5-3.5 mm
Max. Size 150x1000 mm 500x1500 mm 610x3000 mm 610x1500 mm 500x1000 mm



Other size can be processed as per customer's request.

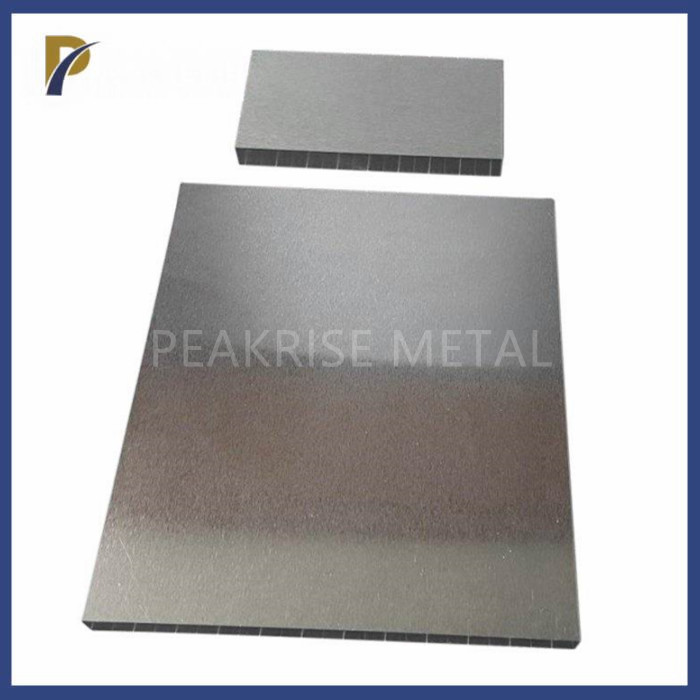

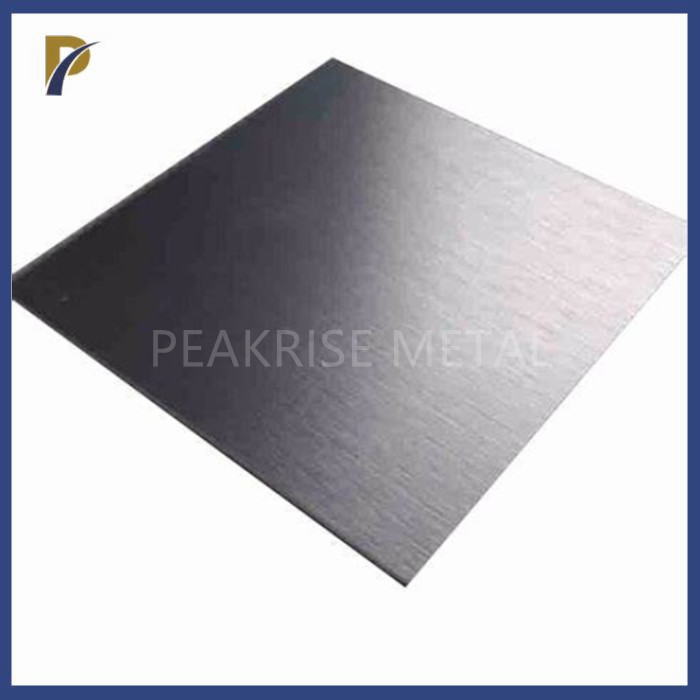

Thickness 3.0mm TZM Alloy Plate Prepared Metal By Powder Metallurgy Alloy Plates 0Thickness 3.0mm TZM Alloy Plate Prepared Metal By Powder Metallurgy Alloy Plates 1



3. Production Of TZM Alloy Plate Prepared By Powder Metallurgy:



1). Mix 0.45% Ti, 0.08% Zr, 0.01% C and graphite powder with Mo for 6 hours.


2). The mixed powder is pressed and formed under the pressure of 150MPa by cold isostatic pressing.


3). Under the protection of hydrogen, place the pressed slab in a sintering furnace at 2100°C for 4 hours, and then sinter into a TZM alloy slab.


4). The slab with a thickness of 30mm is hot rolled at 1350°C, so that the thickness of the slab becomes 4.5mm, and the deformation amount is 83%. Then at 700~750℃, the slab is rolled to 1.2mm, and its total deformation is 95%.


5). Anneal at 900℃ to relieve stress, then longitudinally roll to 0.7mm at 600~700℃.


6). After annealing at 850°C to eliminate stress, longitudinal cold rolling is performed at 200~300°C to obtain a 0.5mm alloy plate, in which the total deformation is 98%.



4. Chemical Of TZM Alloy Plate Prepared By Powder Metallurgy:



Quantitative analysis
Element Si Mn Ni Cu V Zr O P Fe Mg
Concentration(%) 0.002 0.0009 0.0008 0.0018 0.013 0.086 0.32 0.001 0.0011 0.0015
Element Al Ti Ca C N
Concentration(%) 0.001 0.5 <0.001 0.012 0.0022
Purity(Metallic Base) Mo≥99.06%(TZM)



Related Products:

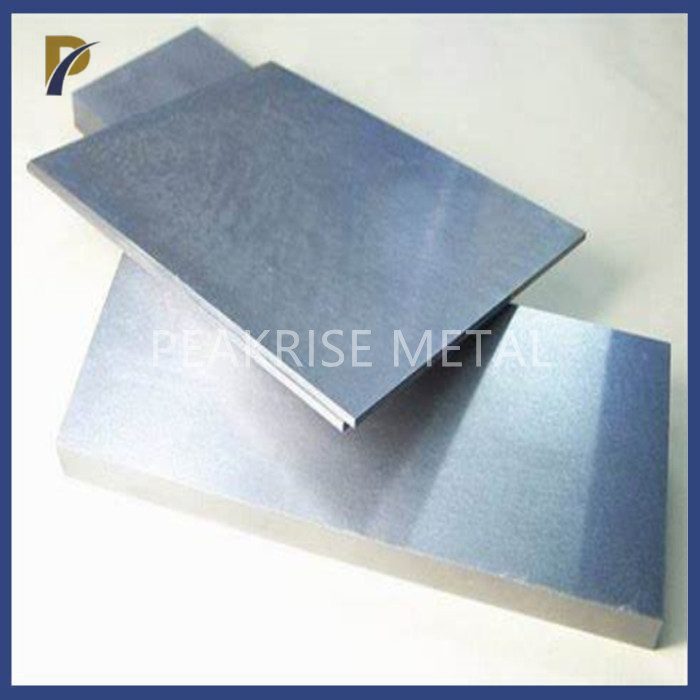

Thickness 3.0mm TZM Alloy Plate Prepared Metal By Powder Metallurgy Alloy Plates 2Thickness 3.0mm TZM Alloy Plate Prepared Metal By Powder Metallurgy Alloy Plates 3Thickness 3.0mm TZM Alloy Plate Prepared Metal By Powder Metallurgy Alloy Plates 4Thickness 3.0mm TZM Alloy Plate Prepared Metal By Powder Metallurgy Alloy Plates 5
