99.95% Strip Molybdenum Heating Element For Hot Zones Molybdenum Heater Molybdenum Heating Elements Moly Rod

Place of Origin China
Brand Name PRM
Certification ISO9001
Model Number Heat Element
Minimum Order Quantity 1kg
Price $50~150/kg
Packaging Details Plywood case
Delivery Time 7~10 work days
Payment Terms T/T
Supply Ability 2000kgs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Molybdenum Heat Element For Hot Zones Material Molybdenum And Molybdenum Alloy
Purity 99.95% Density 10.2g/cm3
Grade Mo, MoLa, TZM Shape Strip Heater,Heater Wire And Rod
Size As Per Customer Request Use Temperature 1100~1800°C
High Light

Hot Zones Molybdenum Heating Element

,

Strip Molybdenum Heating Element

,

99.95% Molybdenum Alloy

Leave a Message
Product Description

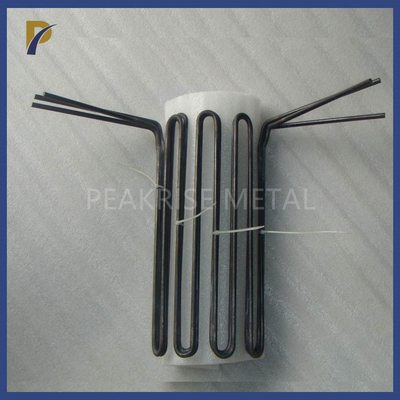

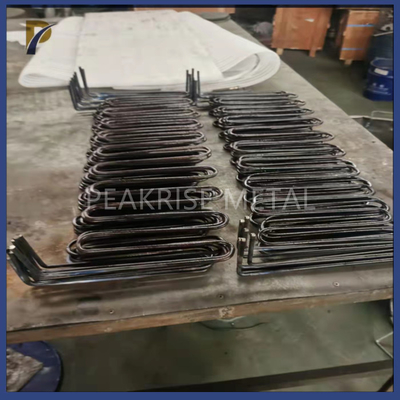

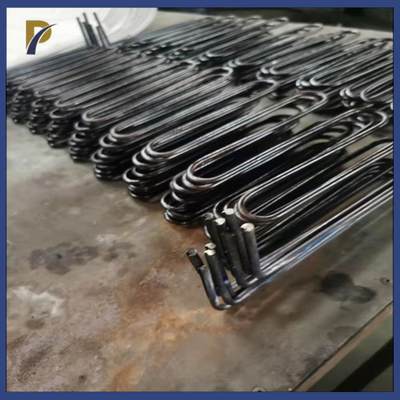

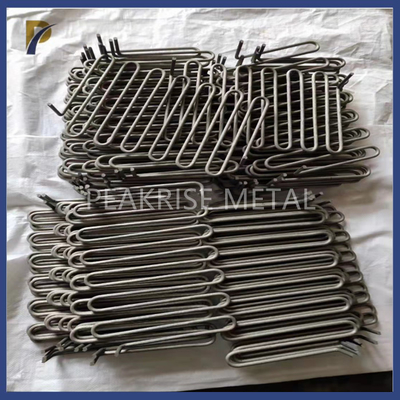

Molybdenum Heat Element For Hot Zones



1. Description Of Molybdenum Heat Element For Hot Zones:



The commonly used models of molybdenum heating element are molybdenum wire heating element and molybdenum rod heating element. There are two types of molybdenum wire heating elements: one-section and two-section. They are constructed from many strands of molybdenum alloy wire. The molybdenum rod heating element is made of pure molybdenum rods with a diameter of 5-16mm and a content of 99.95% high-temperature molybdenum. indivual. The length of the heating part is 300-1200mm. The length of the U-shaped heating element is between 1000-4000mm. The operating temperature is 1000-1800 ℃, and it can be used in various atmosphere furnaces or vacuum furnaces. The corrosion resistance is about twice that of silicon carbon rods and silicon molybdenum rods.



2. Specification Of Molybdenum Heat Element For Hot Zones:



Special supplier of Mo heater element
Fine shape according to customer's drawing



Molybdenum Heat Element



We provide heating elements for hot zones in the form of strip heaters, wire and rod elements, stranded-wire elements, or mesh heaters depending on the furnace design and operating temperature.



1) Molybdenum Strip Heater



Made of Mo, MoLa, TZM

Very fine shape

High mechanical and thermal stability

Low creep deformation

Supply heating elements according to user's drawing



2) Molybdenum heater wire and rod



Size: dia.0.3 - 3 mm x coil

dia. 3 - 11 mm x 6000 mm long

Very fine surface and density uniformity



99.95% Strip Molybdenum Heating Element For Hot Zones Molybdenum Heater Molybdenum Heating Elements Moly Rod 099.95% Strip Molybdenum Heating Element For Hot Zones Molybdenum Heater Molybdenum Heating Elements Moly Rod 1



3. Physical And Chemical Properties Of Molybdenum Heat Element For Hot Zones:



Product name: Mo heater element
Tensile strength 610 Mpa
Elongation ≥10%
Purity ≥99.95%,99.97%
Size:

dia.0.3 - 3 mm x coil

dia. 3 - 11 mm x 6000 mm long

Surface: black
Use temperature 1100~1800°C
Quantitative analysis
Element Ca Pb Fe Mg Si Bi Al Ni P Cu
Concentration(%) 0.0006 0.0006 0.001 0.0006 0.003 0.0006 0.003 0.0006 0.001 0.0006
Element C O Sb
Concentration(%) 0.001 0.005 0.0006
Purity(Metallic Base) Mo99.95%
Element Ni Mg Fe Sn Al Sb Si P Cd
Concentration(%) 0.0014 <0.0001 0.0047 <0.0001 0.0002 <0.0001 <0.001 <0.001 <0.001
Element C N Bi Pb Cu
Concentration(%) 0.0021 0.03 <0.0001 <0.0001 <0.0005
Purity(Metallic Base) Mo≥99.97




4. Application Of Molybdenum Heat Element For Hot Zones:


Molybdenum Heater element can be used for Hydrog enenvironment furnace, vacuum furnace etc.



Other Parts For Hot Zones:



99.95% Strip Molybdenum Heating Element For Hot Zones Molybdenum Heater Molybdenum Heating Elements Moly Rod 299.95% Strip Molybdenum Heating Element For Hot Zones Molybdenum Heater Molybdenum Heating Elements Moly Rod 399.95% Strip Molybdenum Heating Element For Hot Zones Molybdenum Heater Molybdenum Heating Elements Moly Rod 499.95% Strip Molybdenum Heating Element For Hot Zones Molybdenum Heater Molybdenum Heating Elements Moly Rod 5



      Mo crucible                    Mo  hammer                      Mo sheet                          Mo fastener
